3-in-1 Fast Connector Pre-connectorized FTTH Drop Cable G657A2 SM

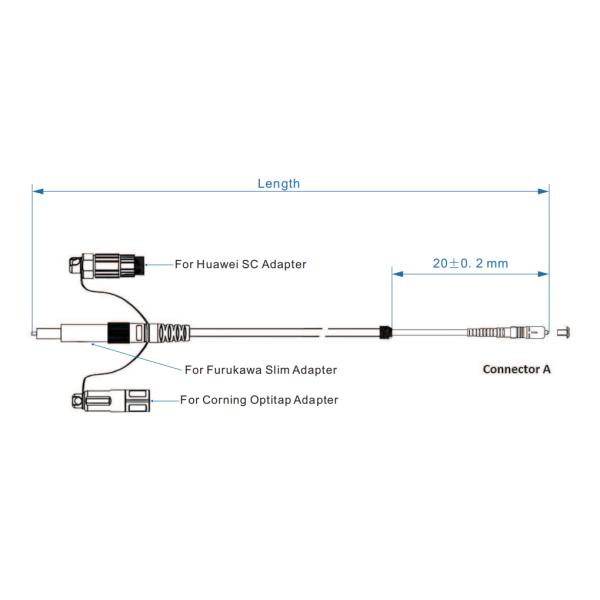

Dowell 3-in-1 Fast connector (Furukawa, Corning Optitap, Huawei Mini SC Compatible) is used on distribution boxes (adapters) and pre-terminated drop cables. It is compatible with SC-APC polishing type. the Triple-Compatible Fiber Optic Patch Cable is a high-performance, multi-brand connectivity solution designed for seamless integration with Huawei, Corning, and Furukawa optical network systems. This cable features a hybrid connector design compatible with three brands, ensuring flexibility and interoperability in diverse environments. It is engineered for high-speed data transmission, low signal loss, and long-term reliability, making it ideal for telecom, data centers, and enterprise networks.
Optical Specification:
| Connector | Mini SC/Optitap/Slim | Polish | APC-APC |
| Fiber Mode | 9/125μm, G657A2 | Jacket Color | Black |
| Cable OD | 2x3;2x5 3 ;5mm | Wavelength | SM:1310/1550nm |
| Cable Structure | Simplex | Jacket Material | LSZH/TPU |
| Insertion loss | ≤0.3dB(IEC Grade C1) | Return loss | SM APC ≥ 60dB(min) |
Mechanical and Characteristics:
| Items | Unite | Specifications | Reference |
| Span Length | M | 50M(LSZH)/80m(TPU) | |
| Tension(Long Term) | N | 150(LSZH)/200(TPU) | IEC 61300-2-4 |
| Tension (Short Term) | N | 300(LSZH)/800(TPU) | IEC 61300-2-4 |
| Crush (Long Term) | N/10cm | 100 | IEC 61300-2-5 |
| Crush (Short Term) | N/10cm | 300 | IEC 61300-2-5 |
| Min. Bend Radius (Dynamic) | mm | 20D | |
| Min. Bend Radius (Static) | mm | 10D | |
Features:
1.1 IP68 protection, salt-mist proof, humidity proof, dust proof.
1.2 Be suitable for connect Huawei Mini SC and Corning O and FuruKawa Slim adapt ptitap er.
1.3 For aerial, below ground and duct applications.
1.4 Meet the SC-APC standard of IEC61754-4.
1.5 With the functions of waterproof, dust-proof and corrosion resistance.
1.6 PEI material, Acid and alkali resistance, Ultraviolet resistance;
1.7 Outdoor use, 20-year service life;
Application:
2.1 Data Centers: High-density patching for switches, servers, and storage systems.
2.2 Telecommunication Networks: FTTH , ODN
2.3 Enterprise Networks: Campus/corporate backbone connectivity.
2.4 Industrial Environments: Factory automation, harsh-condition deployments.
2.5 Broadcast & CATV: High-bandwidth signal transmission.
|
|
